Brihadesvara Peruvudaiyar temple in Thanjavur – an architectural marvel by the dynamic Raja Raja Chola I

“When we recall the nature and extent of the efforts and sacrifices that must have gone into the construction of this magnificent temple… and the manner in which numerous villages all over the empire were linked with the daily routine of the temple… when we consider further, how all the learning and the arts that flourished in the country were impressed into the service of the temple, we cannot fail to observe how the Great Temple had come to hold, from its very inception, a prominent place in the polity of the land. The temple was meant to dominate Thanjavur as Thanjavur dominated the rest of South India at the time: it was indeed the masterpiece of Rajaraja’s rule.” ~ K. A. Nilkanta Sastri

IMG_6663
The north facing wall of the Brihadeswara/Peruvudaiyar temple
tanjavur-temple-sketch-2-e1437811698999
Illustrative diagram of the main shrine showing the southern face (photo from Internet)
Subsidiary shrines at Brihadeswara/Peruvudaiyar temple. Photo from Internet

A little on the Chola Architecture

In South India the earliest temples were made by the Pallavas (7th -9th c. CE), and they developed certain typical characteristics of their own. The Cholas while keeping alive the Pallava features on monuments, made further improvisations and created an unique style of their own. So if we carefully observe, we will find that Chola niches are narrower than the early Pallava ones, while the carvings on the top of the niche appear rounder than the Pallavas (the image below: Chola on left and early Pallava on right). Similarly a closer look at the Pallava kudu shows the finial with a shovel-head (Mahabalipuram) while the Chola ones have a lion-head in their finials.

In the early Pallava rock-cut monuments, that we see in Mahabalipuram (the right image showing Durga on Draupadi ratha outer wall) the niche is wide, and the makara-torana design on the top is flat with the floral tail of the makara flowing out on two sides. Chola ones show niches that are narrower, while the pattern  on top is rounder. The pillar capital and pillar/pilaster differences are noteworthy too.

Another prominent difference that is noticed between the Chola and the Pallava monuments are in the size of their gopuras. The vimana in Pallava temples stand out prominently while the gopura is smaller and squatter (Kailashnathar temple). In Chola temples the vimana is colossal by the time of Rajaraja (example: Thanjavur, Gangaikondacholapuram, and Darasuram). While the gopuras in early Chola temples were relatively smaller (though not as squat as the Pallavas), in the late Chola period the gargantuan gopuras are bigger than even the main shrine vimana. The dwarapalas of the Pallavas are normal human figures with two arms, while the Cholas take their dwarapalas to another level altogether. Stern, four armed men, look down fiercely at the devotees as their fingers wonder and warn of the powers of the divinity inside.

On left is the normal human like figures as dwarapalas (Pallavas), while on the right is the Chola dwarapala at Thanjavur.

Brihadeswara Temple (Peruvudaiyar temple) at Thanjavur: A Pictorial Journey

The Brihadisvara temple is dedicated to Shiva, and the sanctum hold a linga established by Rajaraja himself who named it as Rajarajesvaram- udayar. This temple like all other large Chola temples have a flight of steps that lead from sides to a platform, from which one enters the pillared mandapas and moves towards the sanctum. The temple balustrades are huge with ornamented outer sides, and curled up ends. The exterior walls show alternating koshtha-panjaras and kumbha panjaras, a typical Chola feature; while the niches show pilasters on two sides with a curved crown moulding decorated with two kudus having simha (lion) heads.

IMG_6730
Alternating koshtha-panjaras (central one holds a niche with Skanda in it) and kumbha panjaras (with the pot like bases)

The niches on the southern wall of the temple holds Ganesha, Vishnu with his consorts, Sri/Lakshmi, a pair of dwarapalas, Bhikshatana, Virabhadra, two more dwarapalas, Dakshina-murti, Kalantaka, and Natesa. The north facing wall shows Ardhanarisvara, Gangadhara, two dwarapalas, Virabhadra, Alingana-murti, Shiva with a spear, two more dwarapalas, Saraswati, Mahishasuramardini and Bhairava. The west wall niches hold Hari-Hara, Ardhanarisvara, two dwarapalas, and two Chandrasekharas (one has a halo). The temple faces east and a flight of stairs lead to a pillared mandapa of a later period. A nandi manadapa, also of a later period, sits in the courtyard facing the main shrine, and in it sits a huge monolithic black nandi. The nandi mandapa shows colourful paintings on its ceilings which are of a much later period (late 19th to early 20th century) done  by local artists.

DSC_1721

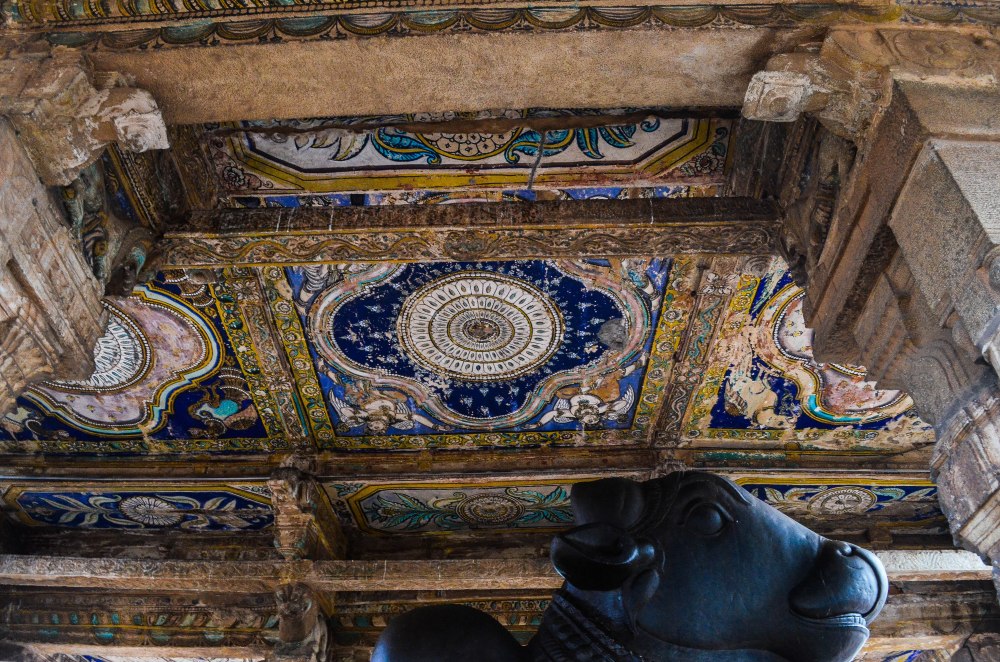

The nandi mandapa in front with the huge monolithic Nandi sitting facing the sanctum

DSC_1758DSC_1760

The temple’s large courtyard is surrounded by a pillared cloister attached to the prakara/wall.  There are two Chola era gopuras at a distance from each other. As one enters, he or she first crosses a gateway known as the Maratha gate, which is a basic gateway, and as the name suggests, built later by the Marathas. The next gate is the first of the Chola structures and is larger in size. After crossing it one sees the second Chola era gopura guarded by two huge dwarapalas, with beautiful carvings that show stories of Shiva’s marriage, Markandeya episode, Arjuna getting the Pashupata weapon, etc. A moat, now empty, surrounds the temple complex.

DSC_1648-2
Right in front is the small Maratha gate, built at much later period by the Marathas. Beyond it rises the tall head of the first Chola gopuram.
DSC_1650
The dry moat around the temple
IMG_3796
An old photo from the British library archives shows how it appeared when the moat was filled with water, circa 1880s.
DSC_1655

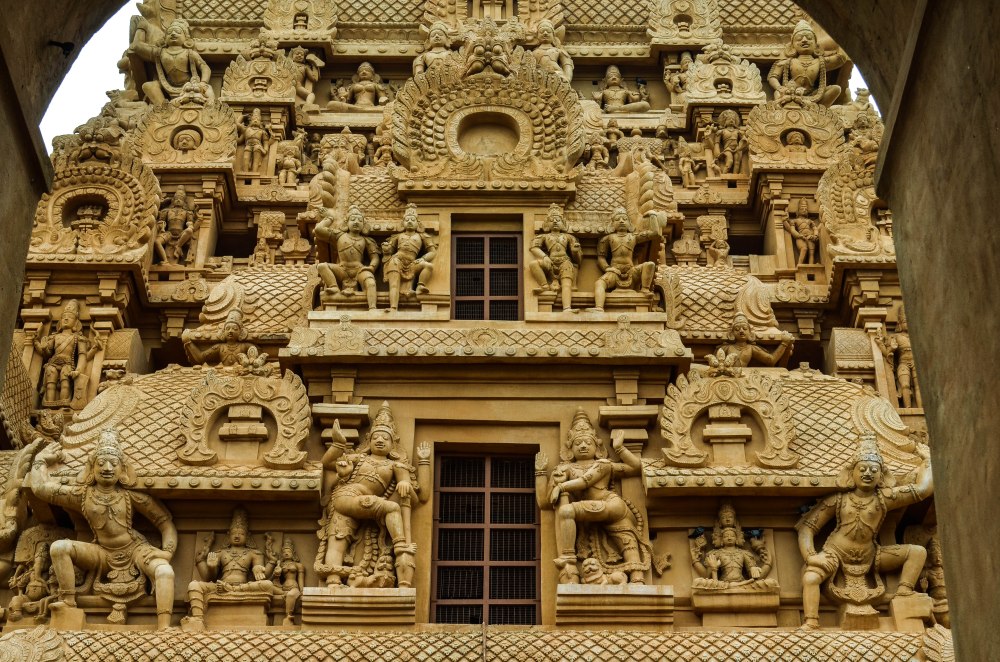

The first Chola gateway/gopura known as Keralantakan tiruvasal
The second Chola gopura known as Rajarajan tiruvasal with its two large dwarapalas on either side of the door
DSC_1728
The pillared cloister that runs all round the coutryard
IMG_6650
108 Shiva-lingas inside the cloister
DSC_1726
Nagas inside the cloister
DSC_0003
Lingodbhava.
DSC_0009
Seen here is the vimana of the Chandikesvara shrine on the northern side
DSC_0015
Some of these images/icons were shown as subsidiary to the temple architecture, and they were carved simply, on plain walls and with less ornamentation. Chola sculpture can be divided into three main types: decorative, icons, and portraits. Besides the three, there are also the huge dwarapalas, panels with birds and animals, musicians, dancers, and depictions of stories from our Epics and the Puranas.
DSC_0021
Beautiful walls and vimana of the Subrahmanya shrine, which was built much later during the Nayaka period (17th century). The temple has exquisite carvings.
DSC_0032
An exquisitely carved pranala and tank by the side of the Subrahmanya shrine
DSC_0037
Balustrade on the Subrahmanya shrine showing an elephant picking up an enemy soldier from his horse. On the other side of the balustrade the elephant is seen throwing down the body of the soldier after killing him.
DSC_1804
Dwarapala guarding the southern entrance, showing tarjani (warning) and vismaya (wonder) mudras. Seen in front are inscriptions on plinth that go around the temple.
IMG_3804
Inscription that tell us that Raja Raja Chola, gifted a gold-covered finial which was placed on top of the main vimana. It was on the two hundred and seventy-fifth day of the twenty-fifth year of his reign (1010). (Photo from internet)

Totally it is said that the temple holds 64 inscriptions by Rajaraja; 29 by Rajendra I; one each by Rajendradeva, Kulottunga I, and Vikrama Chola; 3 by a Pandyan ruler; 2 by Vijayanagara kings; 10 by Maratha rulers; two by the Nayakas. The Maratha inscriptions were by Sarafoji II, where one inscription states that the the king arranged for purification and reconsecration ceremonies of the temple in 1801-02; while adding mandapas; repairing several damaged shrines; renovating the temple wall, kitchen, and courtyard flooring (data from ASI reports)



DSC_1808
Shiva
IMG_6705
Bhikshatana
IMG_6711
Nataraja on southern side of the main vimana
DSC_1817
Kalantaka on southern wall
IMG_6701

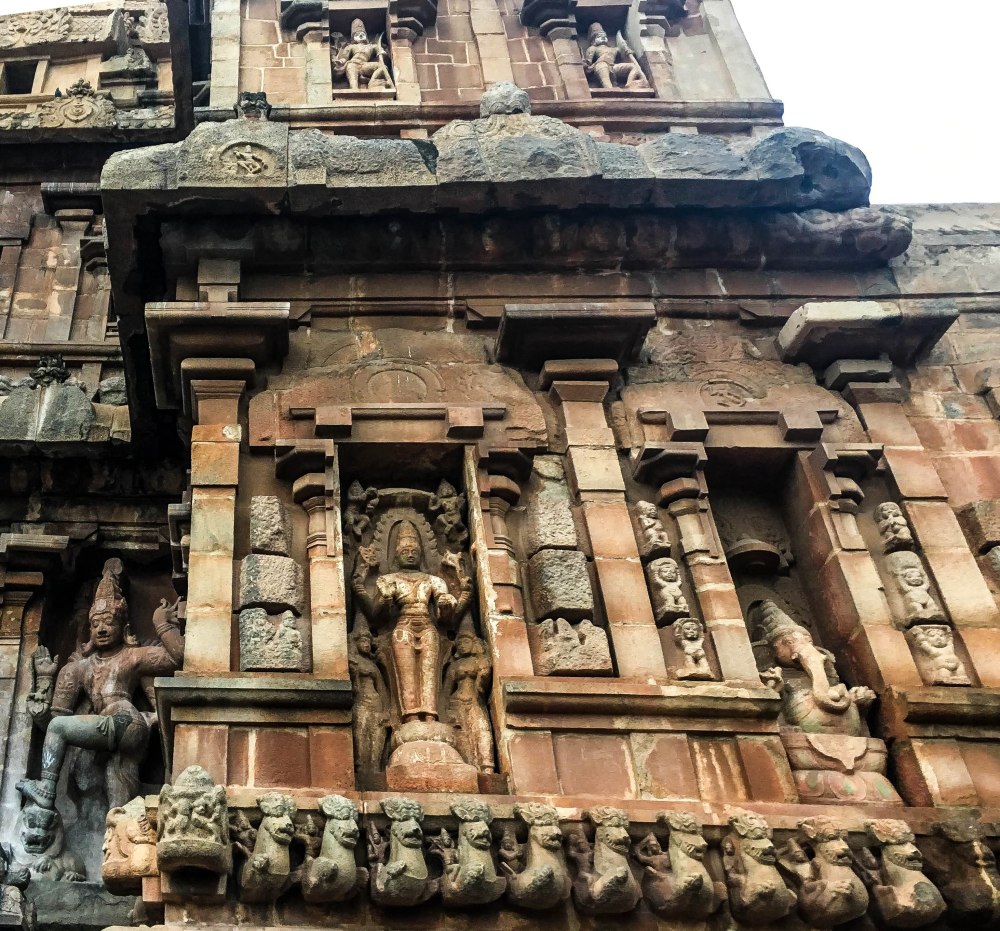

Vishnu and Ganesha on southern wall
IMG_6797
Saraswati on northern entrance
IMG_6762
Miniature panel showing Durga fighting the two asuras, Shumbha and Nisumbha
IMG_6752

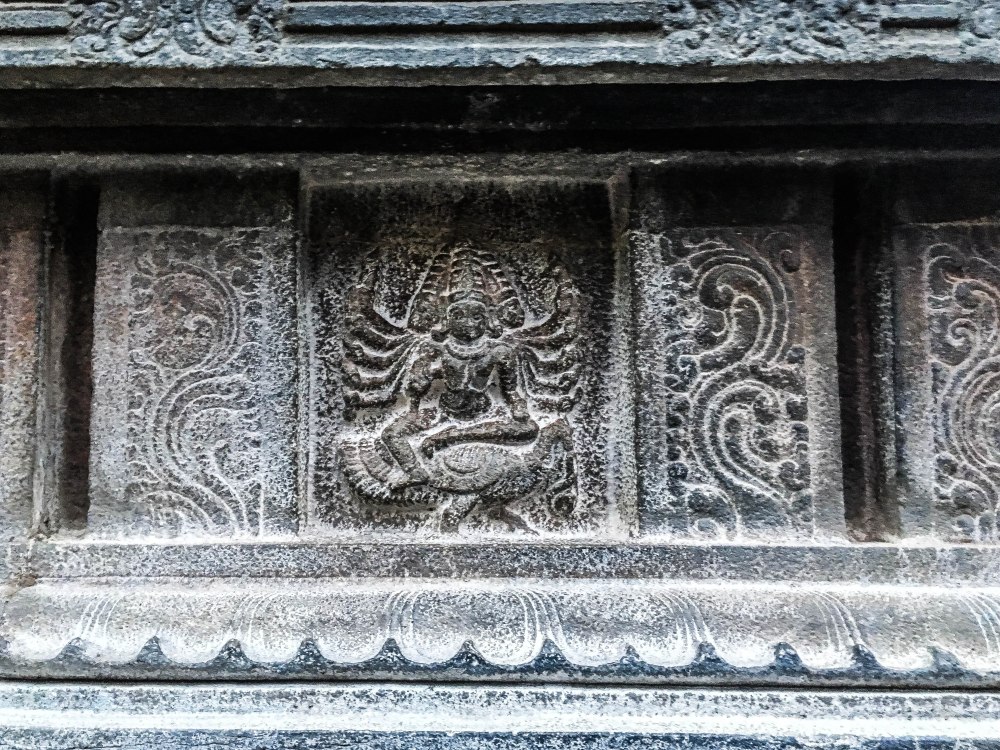

Miniature panel showing Subrahmanya/Skanda/Kartikeya
DSC_0008
Karuvar devta shrine, built at a later period (likely a Maratha era structure)
IMG_6665
Beautiful pillars of the Amman shrine, which was built during the time of the Pandyas, in the 13th century
DSC_1765
View of the Brihadesvara temple from Nandi mandapa
DSC_1782

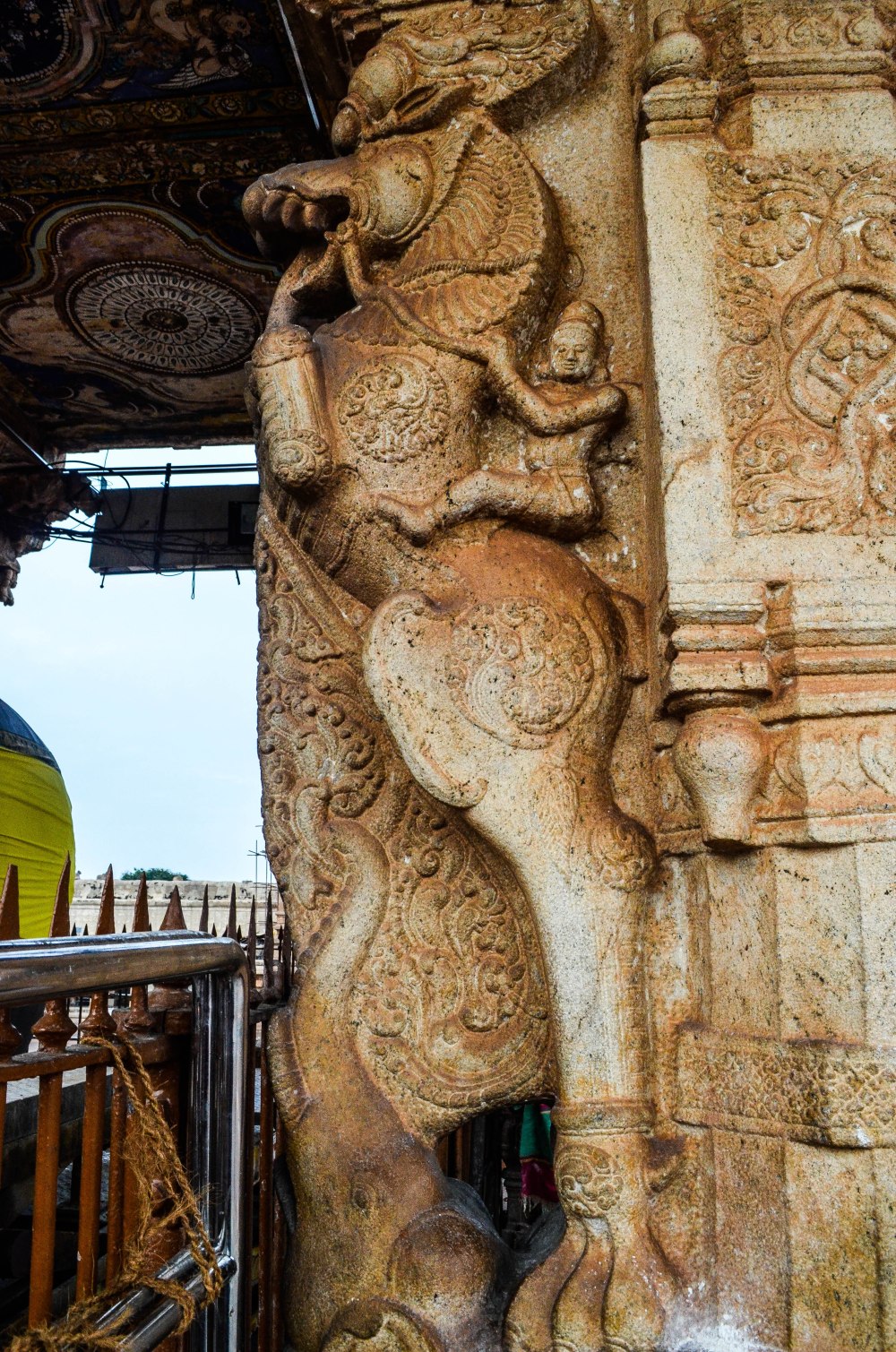

A rider on horse on a pillar in the nandi mandapa

The construction of the vimana and the setting in place of the heavy sikhara on top of the griva has long been a topic of speculation among the archaeologists. One line of thought believes that the heavy stone round Shikhara was carried on top by building an elevated plane all around the vimana

How the heavy stone shikhara was taken up. (photo from the internet)
IMG_6804

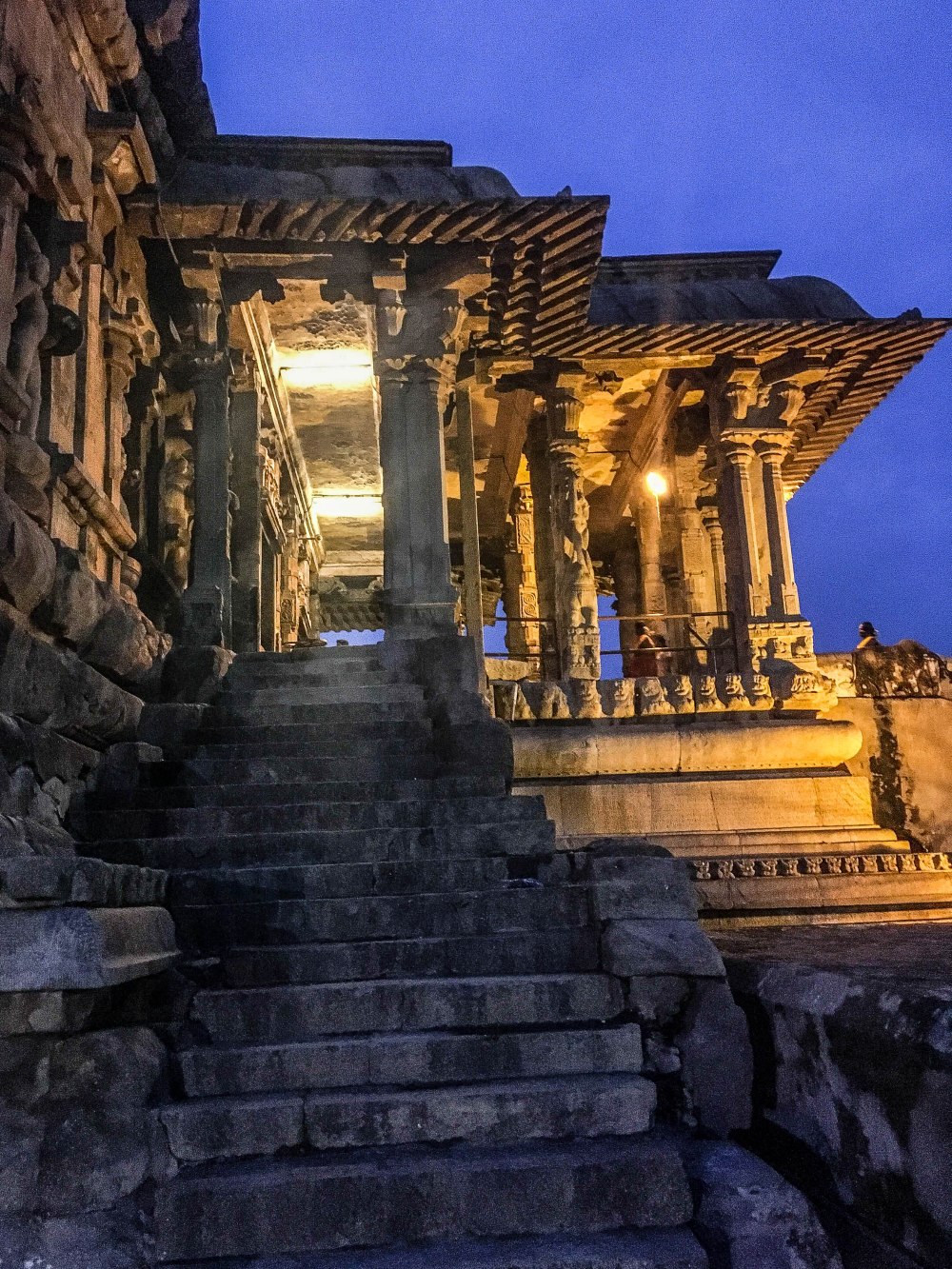

Stairs leading to the front mandapa

The masterpiece of Chola art is seen in this temple in the incomplete carvings of 81 of the 108 fine karanas of Natyashastra on the corridor walls (temple’s first floor). The dark passage that goes around the sanctum also holds another secret in the form of three huge sculptures of Shiva. This passage ceilings and walls also hold exquisite Chola era paintings which had been covered over by 17th century Nayaka era paintings. The original paintings have now been restored after extensive works undertaken by the ASI from the 2000s.

190px-PeruvudaiyarKoyilThanjavurDancePostition
Shiva in of the 81 dance positions carved on the outer wall of the upper storey corridor wall (photo from Wikipedia)
Rajaraja_mural-2
A Chola era mural in the corridor around the sanctum. According to Sivaramamurti in his book “South Indian Paintings”, the mural is of Rajaraja Chola and his guru Karuvurar; another alternate line of thinking claims that this painting is of a prince and a rishi. (photo from Wikipedia)

Brihadeswara temple (Peruvudaiyar temple) in Thanjavur with its awe inspiring architecture, paintings, and sculptures, epitomizes the might and grandeur of the Chola era. The temple is huge and the entire complex will take at least one whole day (if not a day more) for a thorough look at everything.  It would be prudent to stay in Thanjavur for a few days and explore the three jewels of the Chola temple architecture at one’s own leisure : Brihadeswara temples at Thanjavur and Gangaikondacholapuram, and Airavatesvara temple at Darasuram. The best time to visit this place is during November to January, when weather is relatively cooler. The temple sanctum remains closed from 12 pm to 4 pm, and one must keep that in mind while visiting the temple.

References:

ASI reports on Brihadeswara/Peruvudaiyar temple from the ASI archives

George Michell, 2008. Architecture and art of Southern India. Cambridge University Press. PDF

S. R. Balasubrahmanyam, 1975. Middle Chola Temples. Thomson Press, Bombay.

e-book
